Eagle sd card Example

From Manuals

Jump to: navigation, search

microSD card using FAT file system (sd_card)

Compatibility Eagle 50, 50E, 100

This example application demonstrates reading a file system from an SD card. It makes use of FatFs, a FAT file system driver. It provides a simple command console via a serial port for issuing commands to view and navigate the file system on the SD card.

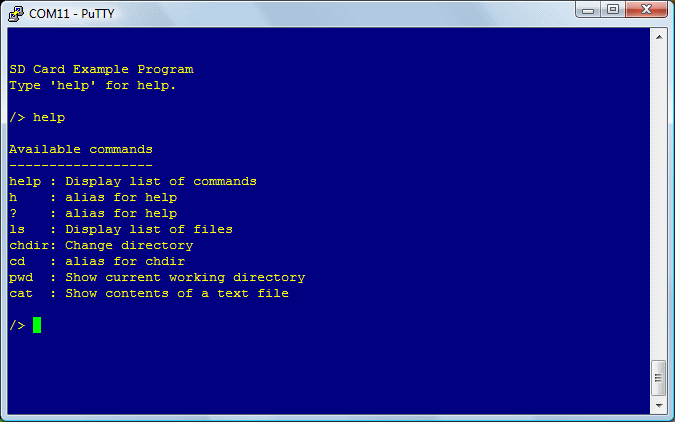

The first UART, which is connected to the COM1 on the Eagle microcontroller board, is configured for 115,200 bits per second, and 8-n-1 mode. When the program is started a message will be printed to the terminal. Type “help” for command help.

References:

For additional details about FatFs, see the following site:

http://elm-chan.org/fsw/ff/00index_e.html
