Appendix C - Configuring Keil MDK for CMSIS-DAP

Please follow these steps for setting up Keil µVision compiler for debugging the Micromint Bambino using the mbed HDK with CMSIS-DAP firmware.

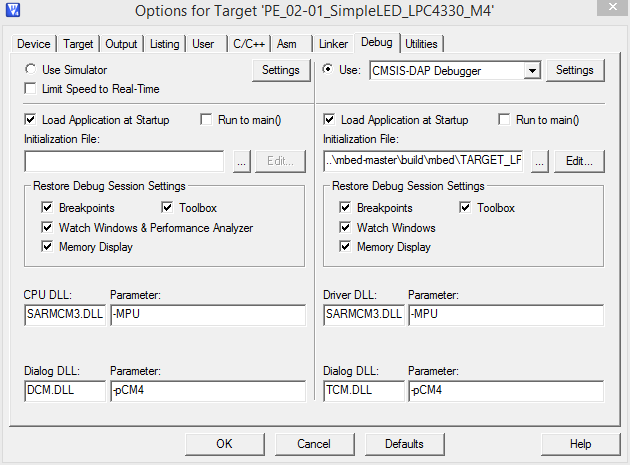

• 1. Press ALT and F7 on the keyboard to bring up the Options for Target window.
• 2. Click on the "Debug" tab.
• 3. Choose the "CMSIS_DAP Debugger" from the drop down in the upper right hand side of the window. Specify the location of the LPC43xx_spifi.ini initialization file.

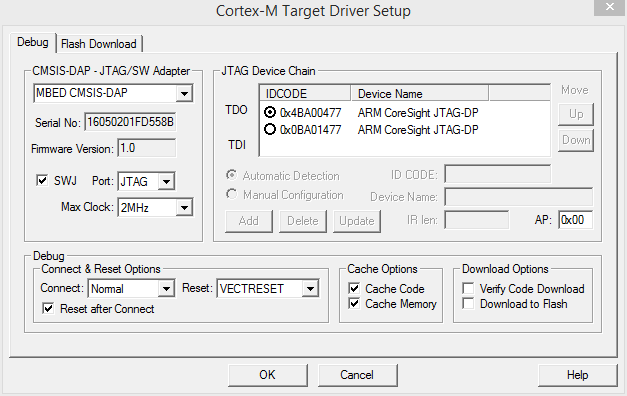

• 4. Click on "Settings" next to where the debugger was selected to bring up the Target Driver Setup window. Select "JTAG" for multi-core debugging.

• 5. Click on the "Flash Download" tab.
• 6. Click the "Add" button.
• 7. Scroll and select "LPC18xx/43xx S25FL032 SPIFI".

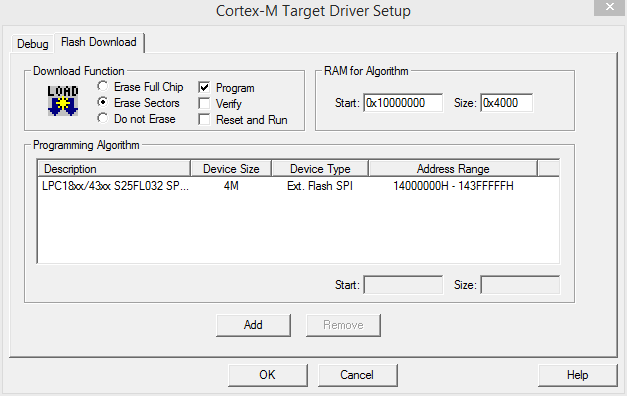

• 8. Change the "Size" to 0x4000 and the Target Driver Setup window should look like the image below.

---
