This example alternately flashes LEDs connected to pins D0 and D1 on connector J9 of the BAM210.
The signals used for this example are listed below:
| Signal | LPC4330 PIN NAME | BAM210E | BAM210 | BAM200E | BAM200 | Used for |
| D0 | P6_5 | J9-1 | J9-1 | S2-5 | S2-5 | Red LED |
| D1 | P6_4 | J9-2 | J9-2 | S2-4 | S2-4 | Green LED |
The following schematic can be used to build the circuit with a BAM210E or BAM210.
Schematic for example 03-02
/*Program Example 3.2: Flashes red and green LEDs in simple time-based pattern
*/
#include "mbed.h"
DigitalOut redled(D0); //define and name a digital output on pin D0
DigitalOut greenled(D1); //define and name a digital output on pin D1
/*Program Example 3.2: Flashes red and green LEDs in simple time-based pattern
*/
#include "mbed.h"
DigitalOut redled(D0); //define and name a digital output on pin D0
DigitalOut greenled(D1); //define and name a digital output on pin D1
int main()
{
while(1) {
redled = 1;
greenled = 0;
wait(0.2);
redled = 0;
greenled = 1;
wait(0.2);
}
}

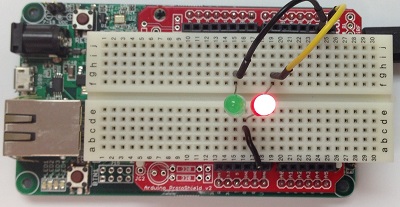

The following image shows the built circuit on a BAM210E.
