Eagle-50 Manual/Getting Started
From Manuals
Steps to Getting Started
Getting started with the Eagle 50/50E can be done in just 6 steps.
- 1. Run the Preloaded Application
- 2. Install the Eagle Code Examples
- 3. Choose a Compiler and IDE (Integrated Development Environment)
- 4. Install the Chosen Compiler and IDE
- 5. Compile a Code Example
- 6. Downloading Code Example to the Eagle 50/50E
Run the Preloaded Application
The Eagle 50E and Eagle 50 come from the factory preloaded with applications. The Eagle 50E has an Ethernet application called enet_io that demonstrates web-based I/O control. The Eagle 50 has a micro SD card application called sd_card that demonstrates accessing a micro SD card through a serial command line. The preloaded applications should be run to test the board after receiving it. The full source code for both applications is provided on the Eagle's Wiki. http://wiki.micromint.com/index.php/Eagle_Documentation
Eagle SBC enet_io Application
The Eagle Single Board Computer's (SBC) with Ethernet are shipped with the enet_io example application from the TI Stellarisware Library. This example application demonstrates web-based I/O control using the Ethernet controller and the lwIP TCP/IP Stack. DHCP is used to obtain an Ethernet address. If DHCP times out without obtaining an address, a static IP address will be chosen using AutoIP. The address that is selected will be shown on COM1, allowing access to the internal web pages served by the application via a normal web browser. Figure 2.1 shows the web page that will first be displayed.
In order to demonstrate this application on an Eagle SBC without the optional USB Debug Port you will need the following software and equipment:
- 1. A Personal Computer (PC) with a serial port or a USB to serial port adapter
- 2. A DB9 to 2x5 adapter cable if using an Eagle SBC where COM1 is a 2x5 pin header
- 3. A null modem cable
- 4. A terminal program such as Putty, HyperTerminal, or TeraTerm
- 5. A web browser
- 6. One Ethernet cable
- 7. One +5V power supply
Please follow these steps to run the enet_io application on an Eagle SBC without the optional USB Debug Port:
- 1. If the Eagle SBC's COM1 port to the computer using the null modem cable. NOTE: Use the 2x5 adapter cable if COM1 is a 2x5 pin header.
- 2. Connect the Eagle SBC's Ethernet port to an Ethernet Network.
- 3. Start and set-up the terminal program with the following settings.
- a. Baudrate – 115200
- b. Data Bits – 8
- c. Parity – None
- d. Stop Bits – 1
- e. Flow Control – None
- 4. Apply power to the board.
- 5. The Eagle SBC will transmit the boards IP address to the terminal
- 6. Open a web browser.
- 7. Type the IP address into the web browsers address bar and the web page in Figure 2.1 should load.
- 8. Click on “I/O Control Demo 1 (HTTP Requests)”.
- 9. Click on the “Toggle LED” button to turn the User LED on.
In order to demonstrate the enet_io application on an Eagle SBC with the optional USB Debug Port you will need the following software and equipment:
- 1. A Personal Computer (PC) with a USB port
- 2. A terminal program such as Putty, HyperTerminal, or TeraTerm
- 3. A web browser
- 4. One USB A to micro USB cable (Supplied with Eagle SBC with USB Debug Port)
- 5. One Ethernet cable
Please follow these steps to run the enet_io application on an Eagle SBC with the optional USB Debug Port:
- 1. Make sure two jumpers are set correctly to enable power to come from the Debug port and enable the virtual COM port. The Eagle 50 jumpers are JP1 for power and and JP6 for the virtual COM port.
- 2. Connect the Eagle SBC's Ethernet port to an Ethernet Network.
- 3. Connect the Eagle SBC to the PC by using the USB A to micro USB cable.
- 4. Wait until the USB drivers have been installed. The USB drivers can be found in the Software Updates section on the Eagle's Wiki. http://wiki.micromint.com/index.php/Eagle_Documentation
- 5. Find out what COM port the Eagle SBC's virtual COM port is by looking in Windows Device Manager’s PORTS (COM & LPT). The Eagle SBC's COM port is the one that says Stellaris Virtual COM Port.
- 6. Start and set-up the terminal program for the COM port that the Eagle SBC is on and with the following settings.
- a. Baudrate – 115200
- b. Data Bits – 8
- c. Parity – None
- d. Stop Bits – 1
- e. Flow Control – None
- 7. Press the Reset button.
- 8. The Eagle SBC will transmit the boards IP address to the terminal.
- 9. Open a web browser.
- 10. Type the IP address into the web browsers address bar and the web page in Figure 2.1 should load.
- 11. Click on “I/O Control Demo 1 (HTTP Requests)”.
- 12. Click on the “Toggle LED” button to turn the User LED on.
Eagle 50 sd_card Application
The Eagle 50 SBC is shipped with the sd_card example application from the TI Stellarisware Library. This example application demonstrates reading a file system from a micro SD card. It makes use of FatFs, a FAT file system driver. The application provides a simple command console via the Eagle 50’s COM1 serial port for issuing commands to view and navigate the file system on the SD card. Figure 2.2 shows what is displayed on a terminal program when the application is run.
In order to demonstrate the sd_card application on an Eagle 50 without the optional USB Debug Port you will need the following software and equipment:
- 1. A Personal Computer (PC) with a serial port or a USB to serial port adapter
- 2. A DB9 to 2x5 adapter cable
- 3. A null modem cable
- 4. A terminal program such as Putty, HyperTerminal, or TeraTerm
- 5. One micro SD card
- 6. One +5V power supply
Please follow these steps to run the sd_card application on an Eagle 50 without the optional USB Debug Port:
- 1. Connect the Eagle 50s COM1 port to the PC by using the 2x5 adapter cable and the null modem cable.
- 2. Start and set-up the terminal program with the following settings.
- a. Baudrate – 115200
- b. Data Bits – 8
- c. Parity – None
- d. Stop Bits – 1
- e. Flow Control – None
- 3. Insert the micro SD card into the micro SD socket on the Eagle 50.
- 4. Apply power to the board.

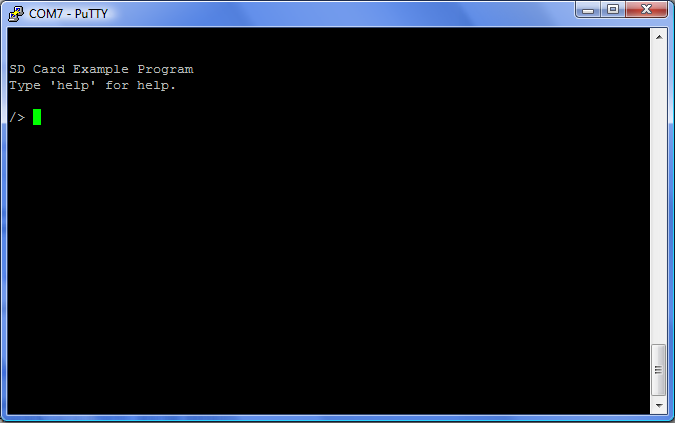

- 5. Please refer to Figure 2.2 to see what the Eagle 50 will transmit the terminal.
- 6. Type “?” then press enter for the command list.
In order to demonstrate the sd_card application on an Eagle 50 with the optional USB Debug Port you will need the following software and equipment:
- 1. A Personal Computer (PC) with a USB port
- 2. A terminal program such as Putty, HyperTerminal, or TeraTerm
- 3. One USB A to micro USB cable (Supplied with Eagle 50E with USB Debug Port)
- 4. One micro SD card
Please follow these steps to run the sd_card application on an Eagle 50 with the optional USB Debug Port:
- 1. Make sure there are jumpers on JP1(below micro USB connector) and JP6 (below micor SD connector) on the Eagle 50.
- 2. Connect the Eagle 50 to the PC by using the USB A to micro USB cable.
- 3. Wait until the USB drivers have been installed. The USB drivers can be found in the Software Updates section on the Eagle's Wiki. http://wiki.micromint.com/index.php/Eagle_Documentation
- 4. Find out what COM port the Eagle 50 is by looking in Windows Device Manager’s PORTS (COM & LPT). The Eagle 50Es COM port is the one that says Stellaris Virtual COM Port.
- 5. Start and set-up the terminal program for the COM port that the Eagle 50 is on and with the following settings.
- a. Baudrate – 115200
- b. Data Bits – 8
- c. Parity – None
- d. Stop Bits – 1
- e. Flow Control – None
- 6. Press the Reset button.
- 7. Please refer to Figure 2.2 to see what the Eagle 50 will transmit the terminal.
- 8. Type “?” then press enter for the command list.
Install the Eagle Code Examples
The Eagle Code Examples are generated from Stellarisware and may be downloaded from the Software Updates section of the Software Updates section of the Eagle Wiki. After they are downloaded unzip them into a directory of your choice. Descriptions of the examples can be viewed on the Eagle Examples Page.
Choose a Compiler and IDE (Integrated Development Environment)
Choosing a Compiler
The Code Examples currently supports the following C and C++ compilers :
- IAR Embedded Workbench for ARM (ewarm) 5.40
- GNU Toolchain (gcc) for ARM 4.4.1 – CodeSourcery G++ 2010q1
- GNU Toolchain (gcc) for ARM 4.4.3 – devkitARM 30
The IAR EWARM C/C++ compiler generally produces the smallest code sizes for ARM targets and has excellent integrated debugging capabilities versus the GNU Toolchain. If a GNU chain is used then an IDE needs to be chosen.
Choosing an IDE
An IDE installs when the IAR C/C++ Compiler is installed where the GNU tool chains do not install one. Code::Blocks IDE and the Eclipse IDE are the IDEs currently supported by the Code Examples. Debugging is currently not supported in the Code::Blocks IDE. If a debug environment is needed the Eclipse IDE should be use.
Install the Chosen Compiler and IDE
Installing EWARM
The IAR EWARM Kickstart Edition is a 32 KB code-sized limited version of the IAR C/C++ compiler and debugger. It can be downloaded from IAR's website.
After downloading the EWARM-KS-CD click on the application to install the IAR Embedded Workbench for ARM. Select the “Install IAR Embedded Workbench” option from the Applications main menu as shown in Figure 2.4. Follow the instructions in the installation application. We suggest that you use the default directories, and the “Full” installation option.
Installing a GNU Compiler and IDE
The Code Examples currently support two GNU tool chains:
- GNU Toolchain (gcc) for ARM 4.4.1 – EABI CodeSourcery G++ Lite 2010q1
- GNU Toolchain (gcc) for ARM 4.4.3 – devkitARM 30
Installing the Sourcery CodeBench Lite Edition for ARM EABI GNU Compiler
Download the Sourcery G++ Lite 2010q1 for ARM EABI version of Sourcery CodeBench Lite Edition for ARM from Mentor Graphics website. When it is finished downloading click on the application to install it and a screen similar to Figure 2.5 should appear. We suggest that you use the default directories during the installation.
If make is not installed on the computer then perform the following steps:
- 1. Open a command prompt
- 2. Type "cd\program files\codesourcery\sourcery g++ lite\bin"
- 3. Press enter
- 4. Type "copy cs-make.exe make.exe"
- 5. Press enter
Installing the devkitARM GNU Compiler
Installing the devkitARM GNU Compiler can be done in 6 steps.
- 1. Download the devkitARM compiler from the sourceforge website by clickin the following link: http://sourceforge.net/projects/devkitpro/files/devkitARM/
- 2. Create a folder called devkitPro on the C drive.
- 3. Extract the contents into the "C:\devkitPro" folder. It should create a folder called "devkitARM".
- 4. Download the msystools from the sourceforge website by clicking the following link: http://sourceforge.net/projects/mingw/files/MSYS/Base/msys-core/msys-1.0.10/MSYS-1.0.10.exe/download
- 5. Run the msystools installer.
Installing the Eclipse IDE
Eclipse is a Java application and has the potential to be run on a wide variety of hardware and operating systems. Eclipse may install on systems with as little as 64MB of memory, however, we recommend to have 1GB of memory or more.
Follow these steps to install the Eclipse IDE:
- 1. Install the desired GNU ARM Toolchain (EABI CodeSourcery G++ Lite 2010q1 or devkitARM 30).
- 2. Be sure the Java Runtime Environment (JRE) is installed.
- 3. The Eclipse SDK includes the Eclipse Platform is provided as an archive and can be downloaded on the following website: http://www.eclipse.org/cdt/downloads.php
- 4. Extract the Eclipse SDK to its desired directory (commonly ‘C:\Program Files\’).
- 5. Start Eclipse by double clicking on the "eclipse.exe" file where the Eclipse SDK was extracted to.
- 6. Select the workspace directory. "StellarisWare\boards\eagle" for the Eagle and "Lincoln\CMSIS\projects" for the Lincoln.
- 7. Click on the "Help" drop down menu and select "Install new software…".
- 8. Expand "CDT Main Features" and check "Eclipse C/C++ Development Tools"
- 9. Click the "Next" button.
- 10. Copy http://opensource.zylin.com/zylincdt and paste it into the "Work with:" box.
- 11. Click the "Add" button.
- 12. Check "Zylin Embedded CDT".
- 13. Click the "Next" button.
- 14. Copy http://sourceforge.net/projects/gnuarmeclipse/files/Eclipse/updates/ and paste it into the "Work with:" box.
- 15. Click the "Add" button.
- 16. Check "CDT GNU Cross Development Tools".
- 17. Click the "Next" button.
Installing the CodeBlocks IDE
Codeblocks is a cross-platform IDE built around wxWidgets, designed to be extensible and configurable. It can be downloaded from the Codeblocks website by clicking the following link: http://www.codeblocks.org/downloads
Install Codeblocks by clicking on the downloaded executable.
Compile a Code Example
Compiling Code Examples with EWARM
Follow these steps to compile an example using EWARM.
- 1. Open IAR Embedded Workbench for ARM (EWARM).
- 2. Click "File|Open|Workspace..." from the drop down menu.
- 3. Browse to the "StellarisWare\boards\eagle" directory and select the eagle workspace. The work space should look similar to the one in Figure 2.5.
- 4. Right click on the desired project and select "Set as Active".
- 5. Right click on the project and select "Rebuild".
Compiling Examples with the GNU Toolchain
Compiling Examples with the Code::Blocks IDE
Follow these steps to compile an example using the Code::Blocks IDE.
- 1. Open the Code::Blocks IDE.
- 2. Click "File" from the drop down menu.
- 3. Click "Open".
- 4. Browse to the "StellarisWare\boards\eagle" directory and select the eagle workspace. The work space should look similar to the one in Figure 2.6.
- 5. Right click on the desired project and select "Activate project".
- 6. Right click on the project and select build.
Compiling Examples with the Eclipse IDE
Follow these steps to compile an example using the Eclipse IDE.
- 1. Open the Eclipse IDE.
- 2. When prompted browse to the "StellarisWare\boards\eagle" directory.
- 3. Click 'OK'.
- 4. Press the 'F5' key on the keyboard to refresh the files.
- 5. Close all of the open projects by right clicking on the project and selecting "Close Project".
- 6. Open a project by right clicking on the desired project and selecting "Open Project". If the Sourcery G++ Lite compiler is not installed and devkitARM is installed then click on "Window>Preferences>C/C++>Build>Environtment" and add a variable called "COMPILER" with the value set to "devkitARM".
- 7. Right click on the project and select build.
Compiling Examples with the GNU Toolchain from the Command Line
All example programs include a Makefile that allows you to build binary images from the command line using the GNU toolchain. The GNU “make” utility is installed as part of the GNU toolchain on the Eagle Setup CD. To build an image using the command line, just change to the project directory and execute “make”. To build the image for blinky you would perform the following:
- 1. Open a command prompt.
- 2. Type “CD\Program Files\Micromint\Eagle\StellarisWare\boards\eagle\blinky”.
- 3. Press “Enter”.
- 4. Type “make”.
- 5. Press “Enter”.
Downloading Code Examples to the Eagle 50/50E
There are many options to download firmware to the Eagle SBC. This section covers firmware downloads using a J-Link debugger, USB Debugger, Ethernet Bootloader, and Serial Bootloader. The method used to download firmware will depend on what hardware is being used.
Downloading Code Examples using EWARM
EWARM can be configured to download firmware using a variety of different debuggers. The following section explains how to set-up EWARM for using the J-Link, optional USB Debugger, and the picoJTAG.
Steps for using the J-Link and EWARM
- 1. Select "Projects>Options" from the drop down menu.
- 2. Select the "Debugger" category.
- 3. On the "Setup" tab select “J-Link/J-Trace”.
- 4. Make sure "Run to" has a check next to it and "main" is written in the text box.
- 5. On the "Download" tab make sure "Verify download" and "Use flash loader(s) are checked
- 6. Click the "OK" button.
- 7. Select "Projects>Download and Debug" from the drop down menu.
- 8. Select "Debug>Go" from the drop down menu.
Steps for using the optional USB Debugger on the Eagle 50 and EWARM
- 1. Select "Projects>Options" from the drop down menu.
- 2. Select the "Debugger" category.
- 3. On the "Setup" tab select “LMI FTDI”.
- 4. Make sure "Run to" has a check next to it and "main" is written in the text box.
- 5. On the "Download" tab make sure "Verify download" and "Use flash loader(s) are checked
- 6. Click the "OK" button.
- 7. Select "Projects>Download and Debug" from the drop down menu.
- 8. Select "Debug>Go" from the drop down menu.
Steps for using the picoJTAG and EWARM
Please see the picoJTAGs Wiki: http://wiki.micromint.com/index.php/PicoJTAG_Manual/Getting_Started#IAR_Plugin
Downloading Code Examples using the CoFlash Flash Programmer and the picoJTAG
CooCox CoFlash is a stand-alone Cortex M Flash Programming software for PCs running Microsoft Windows. It can be downloaded from the following website: http://www.coocox.org/CoFlash_Programmer.htm
Follow these steps to program a Cortex M microcontroller using CoFlash and the picoJTAG:
- 1. Open the CoFlash programmer
- 2. Select picoJTAG as the Adpater
- 3. Select the microcontroller being used
- 4. Select the Command tab
- 5. Browse for the binary or elf file
- 6. Verify that the sector offset and sectors are properly selected. See below figures for further details
- 7. Click on the Program button
Downloading Code Examples using the Ethernet Bootloader
The Eagle 50E is shipped with an Ethernet bootloader that can be used to update the firmware on the board from an Ethernet connection. The bootloader uses the BOOTP and TFTP protocols to temporarily acquire an IP address and copy the binary image to the board. The LM Flash Programmer implements a small BOOTP and TFTP server to do this. The LM Flash Programmer can be downloaded from Texas Instruments website. http://www.ti.com/tool/lmflashprogrammer
The bootloader uses the first 8 KB of the flash address space (0x00000000 to 0x00001fff). Programs loaded with the bootloader should be linked to start at address 0x00002000. That is done automatically if you use the “ewarm/application.icf” or “gcc/application.ld” linker scripts used in the examples.
You can overwrite the bootloader if you so desire by using the “ewarm/standalone.icf” or “gcc/ standalone.ld” linker scripts and downloading your binary image via the JTAG. Currently the bootloader cannot be overwritten via the Ethernet port.
Follow the below steps to use the LM Flash Programmer and the Ethernet bootloader:
- 1. Connect the Eagle 50E’s Ethernet port to the network.
- 2. Apply power to the Eagle 50E.
- 3. Press and hold the Eagle 50E’s “USER” button.
- 4. Press and release the Eagle 50E’s “RESET” button.
- 5. Release the “USER” button. The Eagle 50E’s “USER LED” should now be blinking approximately once a second.
- 6. Open the LM Flash Programmer
- 7. Select the "Setup" tab and you will see a screen similar to Figure 2.9
- 8. For "Interface" select "Ethernet"
- 9. For "Ethernet Adapter:" select the adapter that is connected to the computers network.
- 10. For “Client IP Address:” enter an IP address that is on the same subnet as your Ethernet adapter. The last octet must be different than the Ethernet Adapters.
- 11. For “Client MAC Address:” enter the Eagle 50E’s serial number. It can be found on the bottom of the board and should start with 0021A3. Make sure to separate the octets with dashes (00-21-A3).
- 12. Select the "Program" tab on the LM Flash Programmer software and you will see a screen similar to Figure 2.10.
- 13. Click the “Browse” button and locate the application to be downloaded.
- 14. Click on the “Program” button. It generally takes several seconds for the program to start downloading.
Ethernet bootloader troubleshooting guide:
- 1. Temporarily turn off the computers firewall. If this works add the LM Flash programmer to the Firewalls Exceptions list.
- 2. Try bypassing the network by connecting the Eagle 50E directly to the computer Ethernet port. A regular CAT5 cable will work. Make sure to close the LM Flash Programmer software and start at step 2 in the above procedure.
Downloading Code Examples using the Serial Bootloader
The Eagle 50 is shipped with a Serial bootloader that can be used in conjuction with the LM Flash Programming software to update the firmware on the board from a Serial connection. The LM Flash Programmer can be downloaded from Texas Instruments website http://www.ti.com/tool/lmflashprogrammer.
To place the bootloader in update mode you need to press and hold the user button while the board is starting up, e.g. via power up or when pressing the reset button. After the board starts up release the user button and you will see the user LED blinking approximately once per second. That indicates the board is ready to receive a firmware update via a Serial connection.
Programs loaded with the bootloader should be linked to start at address 0x00002000. That is done automatically if you use the “ewarm/application.icf” or “gcc/application.ld” linker scripts used in the examples. You can overwrite the bootloader if you so desire by using the “ewarm/standalone.icf” or “gcc/ standalone.ld” linker scripts and downloading your binary image via the JTAG. Currently the bootloader cannot be overwritten via the Serial port.
Follow the below steps to set up the LM Flash Loader:
- 1. Open the LM Flash Programmer
- 2. Select the "Setup" tab and you will see a screen similar to Figure 2.11
- 3. For "Interface" select "Serial Interface"
- 4. For "COM Port:" select the COM port that is assigned to "Stellaris Virtual COM Port" in the "Device Manager" for the Optioanl USB Debugger or the COM port that you will be using
- 5. The baudrate should be set to 115200
- 6. Set the transfer size to 76
- 7. Select the "Program" tab and you will see a screen similar to Figure 2.12
- 8. Set the "Program Address Offset" to 2000
- 9. Click the "Browse" button and locate the application to be downloaded
The application can be downloaded using the LM Flash Programmer and the optional USB Debugger by following these steps:
- 1. If you are powering the board via USB put a jumper on JP1
- 2. Make sure there is a jumper on JP6
- 3. Connect the USB cable to the computer and the board
- 4. Press and hold the "USER" pushbutton on the board
- 5. Press and release the "RESET" pushbutton on the board and the LED should start blinking around once a second
- 6. Release the "USER" pushbutton
- 7. Click on the "Program" button
The application can be downloaded using the LM Flash Programmer and COM1 by following these steps:
- 1. If you have an optional USB debugger make sure there is NOT a jumper on JP6
- 2. Connect the serial cable to COM1 (J3)
- 3. Power the board
- 4. Press and hold the "USER" pushbutton on the board
- 5. Press and release the "RESET" pushbutton on the board and the LED should start blinking around once a second
- 6. Release the "USER" pushbutton
- 7. Click on the "Program" button
Downloading Code Examples from the Command Line
The TI Flash Programmer can also be invoked from the command line. The command line allows you to program the Eagle SBC though Ethernet Bootloader, Serial Bootloader, or FTDI JTAG. This section provides a step by step procedure for each programming method. Follow these steps to program the board using the command line and the Ethernet Bootloader. The Eagle 50E and Eagle 100 comes with the Ethernet Bootloader.
- 1. Put the board in bootload mode by hold the user pushbutton while pressing and releasing the reset pushbutton. The user LED will blink when it is in bootload mode.
- 2. Enter the following command line example with your own parameters. Where 192.168.1.201 is the IP address of the computers Ethernet Port and 192.168.1.210 is a free IP address of the network the Eagle SBC is on. 00-21-A3-00-01-02 is the MAC address of the Eagle SBC. The MAC address is also the board’s serial number which is on the bottom of the board.
lmflash -i ethernet -n 192.168.1.201,192.168.1.210,00-21-A3-00-01-02 blinky.bin
- 3. The command line will give you status while the board is programming.
Follow these steps to program the board using the command line and the Serial Bootloader. The Eagle 50 comes with the Ethernet Bootloader.
- 1. Put the board in bootload mode by hold the user pushbutton while pressing and releasing the reset pushbutton. The user LED will blink when it is in bootload mode.
- 2. Enter the following command line example with your own parameters. Where COM7 is the COM port that is connected to the Eagle 50 SBC
lmflash -i serial -d -p COM7 -b 115200 -o 0x2000 -r blinky.bin
- 3. The command line will give you status while the board is programming.
Follow these steps to program the board using the command line and the USB Debug Port
- 1. Connect the USB Debug Port to the computers USB port.
- 2. Enter the following command line example with your own parameters
lmflash –I ftdi –r –o 0x2000 blinky.bin 3. The command line will give you status while the board is programming.
To see all options available from the command line, use “lmflash –h”. To see other examples of command lines, use “lmflash –examples”.
Downloading Code Examples using the LM Flash Programmer and the optional onboard USB Debugger
The USB Debugger option for the Eagle 50 and Eagle 50E can be used with the LM Flash Programmer software to program the board. The LM Flash Programmer can be downloaded from Texas Instruments website http://www.ti.com/tool/lmflashprogrammer. The Eagle 50 and Eagle 50E come preprogrammed with a bootloader that uses the first 8 KB of the flash address space (0x00000000 to 0x00001fff). If you wish to keep the bootloader then applications should be linked to start at address 0x00002000.
Follow these steps to download Code Examples using the LM Flash Programmer and keeping the bootloader entact:
- 1. If the LM Flash Programmer is not installed it can be downloaded from Texas Instruments Website.
- 2. Besure that the Code Example is linked to start at address 0x2000.
- 3. Open the LM Flash Programmer.
- 4. Go to the “Setup” tab to see a screen similar to that in Figure 2.7.
- 5. On “Interface” select “ICDI (Eval Board)”.
- 6. Go to the “Program” tab like Figure 2.8.
- 7. Browse for the Code Examples binary file by clicking on the "Browse" button.
- 8. Under "Options" select "Erase Necessary Pages - (slower)".
- 9. In "Program Address Offset:" enter 2000.
- 10. Click the "Program" button.
Follow these steps to download Code Examples using the LM Flash Programmer without the bootloader:
- 1. If the LM Flash Programmer is not installed it can be downloaded from Texas Instruments Website.
- 2. Besure that the Code Example is linked to start at address 0x0.
- 3. Open the LM Flash Programmer.
- 4. Go to the “Setup” tab to see a screen similar to that in Figure 2.7.
- 5. On “Interface” select “ICDI (Eval Board)”.
- 6. Go to the “Program” tab like Figure 2.8.
- 7. Browse for the Code Examples binary file by clicking on the "Browse" button.
- 8. Under "Options" select "Erase Entire Flash - (faster)".
- 9. In "Program Address Offset:" enter 0.
- 10. Click the "Program" button.
Optional USB Debug Port Unlock Procedure
The Eagle 50 SBC's JTAG port is multiplexed with GPIO pins PB7, PC0, PC1, PC2, and PC3. Somtimes the debug port becomes locked and needs to be reset. Please follow the below steps to unlock the JTAG port.
- 1. Make sure there is a jumper on JP1.
- 2. Make sure there is not a jumper on JP8.
- 3. Connect the USB cable to the computer and the board.
- 4. Open the LM Flash Programmer software
- 5. Set-up the "Configuration" tab according to Figure 2.13
- 6. Select the "Other Utilities" tab
- 7. In the "Debug Port Unlock" section select "Fury and DustDevil Classes"
- 8. Click the "Unlock" button and follow the directions that pop up.
Restoring the Factory Default Firmware
Restoring the Bootloader
- 1. Download the Eagle Factory Binaries file and unzip the files
- 2. Make sure there is a jumper on JP1
- 3. Connect the board to the computer using the USB Debugger
- 4. Open the LM Flash programmer
- 5. Make sure that the LM Flash programmer is configured like Figure 2.14
- 6. Click on the Program tab
- 7. Configure the options so that "Erase Entire Flash" is selected, "Verify After Program" and "Reset MCU After Program" should have checks next to it and the "Program Address Offset" should be 0
- 8. Click the browse button to and browse to the directory where you unzipped the eagle-factory-binaries-2011.02.zip file and select boot_eth.bin for the Eagle 50E or boot_serial.bin for the Eagle 50
- 9. Click on the "Program" button on the LM Flash Programmer
Restoring the Factory Default Application
- 1. If you are not sure if the bootloader has been overwritten then please follow the "Restoring the Bootloader" instructions before proceeding
- 2. Make sure there is a jumper on JP1
- 3. Connect the board to the computer using the USB Debugger
- 4. Open the LM Flash programmer
- 5. Make sure that the LM Flash programmer is configured like Figure 2.15
- 6. Click on the Program tab
- 7. Configure the options so that "Erase Entire Flash" is selected, "Verify After Program" and "Reset MCU After Program" should have checks next to it and the "Program Address Offset" should be 2000
- 8. Click the browse button to and browse to the directory where you unzipped the eagle-factory-binaries-2011.02.zip file and select enet_io.bin for the Eagle 50E or sd_card.bin for the Eagle 50
- 9. Click on the "Program" button on the LM Flash Programmer
