Absolute Minimum and Maximum Ratings

Characteristic	Minimum	Maximum	Unit
Voltage on J1	4.8	5.8	VDC
Voltage on VBAT(J14)		6.5	VDC
Voltage on ADC	0.0	3.6	VDC
Voltage on Digital Input	0.0	3.6	VDC
Operating Temperature	0	70	ºC
Storage Temperature	-50	125	ºC

The Electrum 100 SBC is currently available for commercial temperature ranges. Contact the Micromint sales department for industrial temperature range availability.

Mechanical Dimensions

Below is the physical dimensions for the Electrum 100. The mounting holes will accept a #4 size screw.

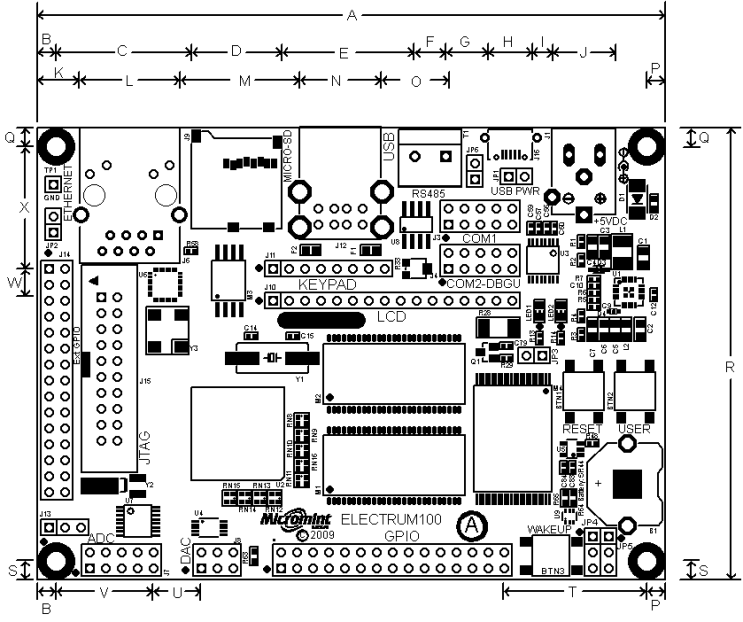

Electrum 100 Mechanical Dimensions

DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters
A	3.94	100.0	G	0.266	6.75	M	0.75	19.05	S	0.115	2.92
B	0.116	2.95	H	0.275	6.98	N	0.511	12.97	T	0.895	22.73
C	0.851	21.61	I	0.124	3.14	O	0.406	10.31	U	0.3	7.62
D	0.567	14.4	J	0.4	10.16	P	0.117	2.97	V	0.608	15.44
E	0.828	21.03	K	0.265	6.74	Q	0.12	3.04	W	0.178	4.52
F	0.2	5.08	L	0.63	16.0	R	2.835	72.0	X	0.76	19.3

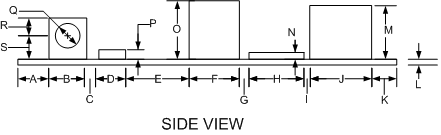

Electrum 100 Suggested Openings

DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters
A	0.33234	8.4415	F	0.511	12.98	K	0.261	6.63	P	0.136	3.45
B	0.3543	9.0	G	0.110	2.794	L	0.06	1.524	Q	0.269	6.83
C	0.117	2.97	H	0.56693	14.40	M	0.545	13.843	R	0.177	4.5
D	0.345	8.763	I	0.072	1.83	N	0.1	2.54	S	0.256	6.5
E	0.638	16.21	J	0.63	16.00	O	0.633	16.068

---
